AMD650FSL-S13（Modified Quad Seal/Flat Bottom Pouch Making Machine）

Modified Quad Seal/Flat Bottom Pouch Making Machine

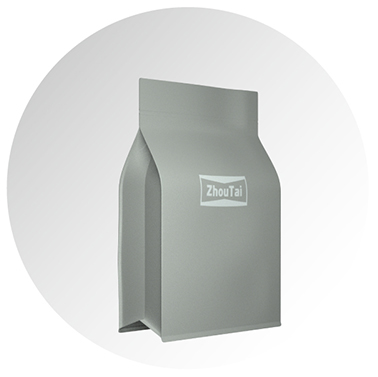

  • Products: Four Side Seal Pouch, Flat Bottom Pouch
  • Suitable Materials: Laminated Film Like LDPE, CPP, MCPP, AL, NYLON, PP
  • Body Film Size: Max Width：1320mm，Diameter：800mm
  • Bottom Film Size: Max Width：330mm，Diameter：800mm
  • Machine Speed: Flat Bottom Pouch：35-120 cuts/min
  • Mechanical Speed: 35 meters/min
  • Pouch width: Max：300mm，Min：100mm(No Skip Function)
  • Pouch Length: Max：650mm，Min：180mm (Min Side Gusset Width>180mm)
Download
Advantages

  • More faster and maximum machine speed can reach 100-120cuts/min.

  • Zipper sealing length extension.

  • Improved auxiliary belt of side gusset delivery.

  • Motor-driven for cutting side gusset.

  • Suitable for long-term stable production, can add PE/PE material, used for mono material flat bottom pouch.
